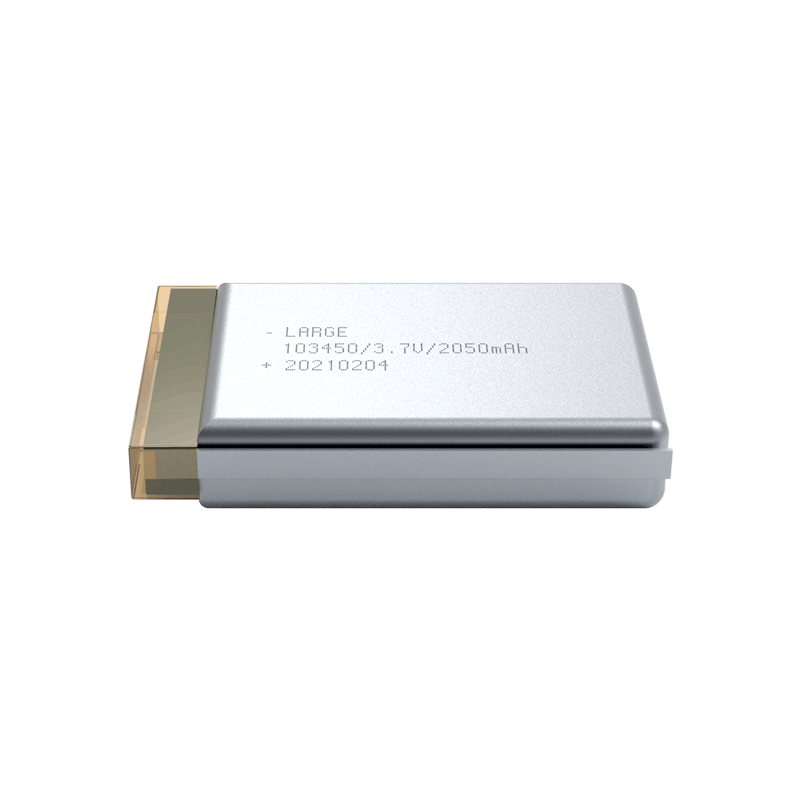

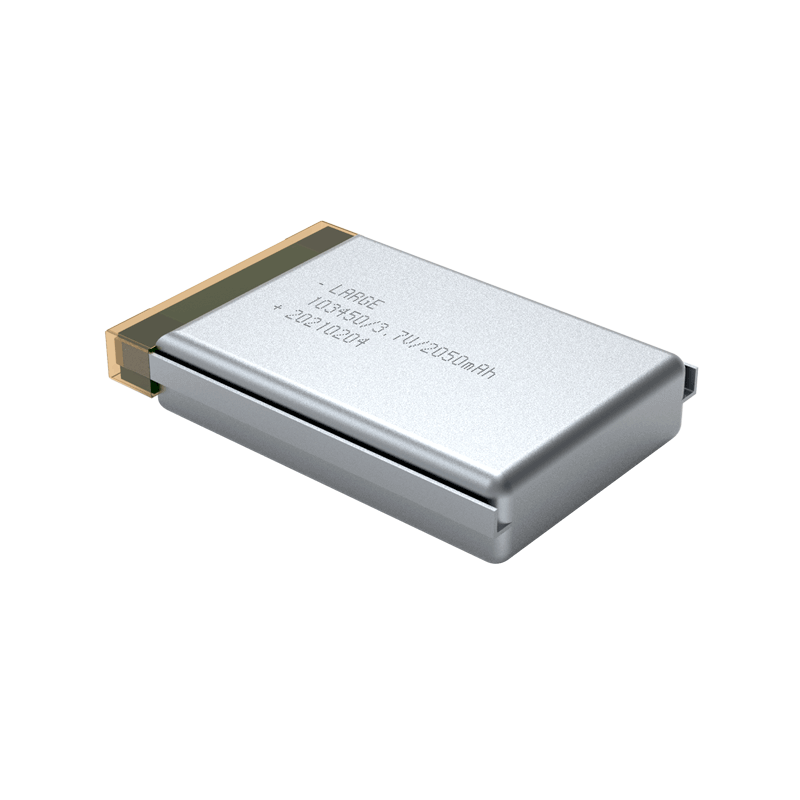

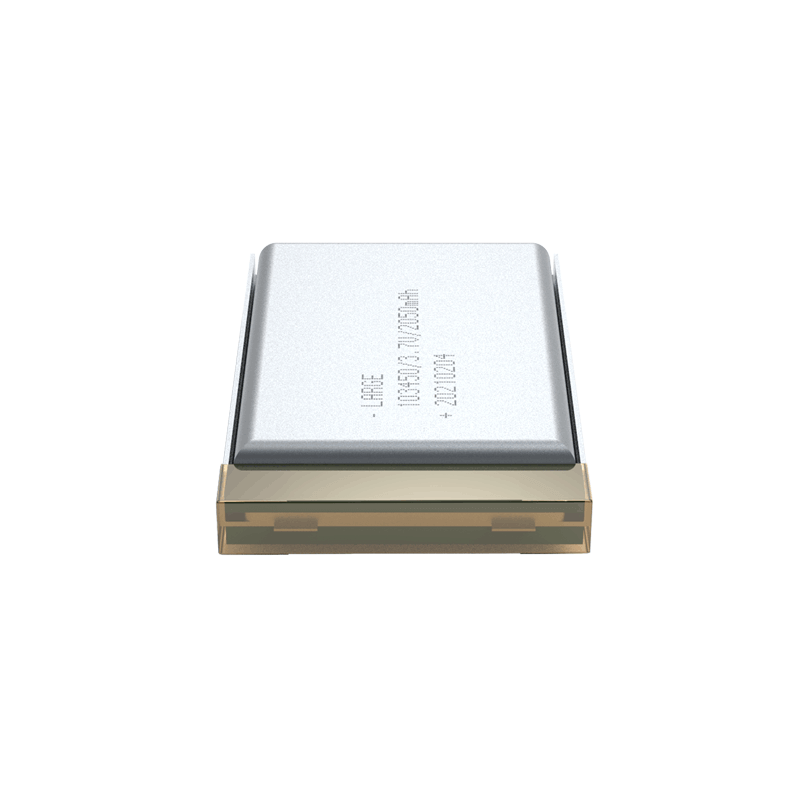

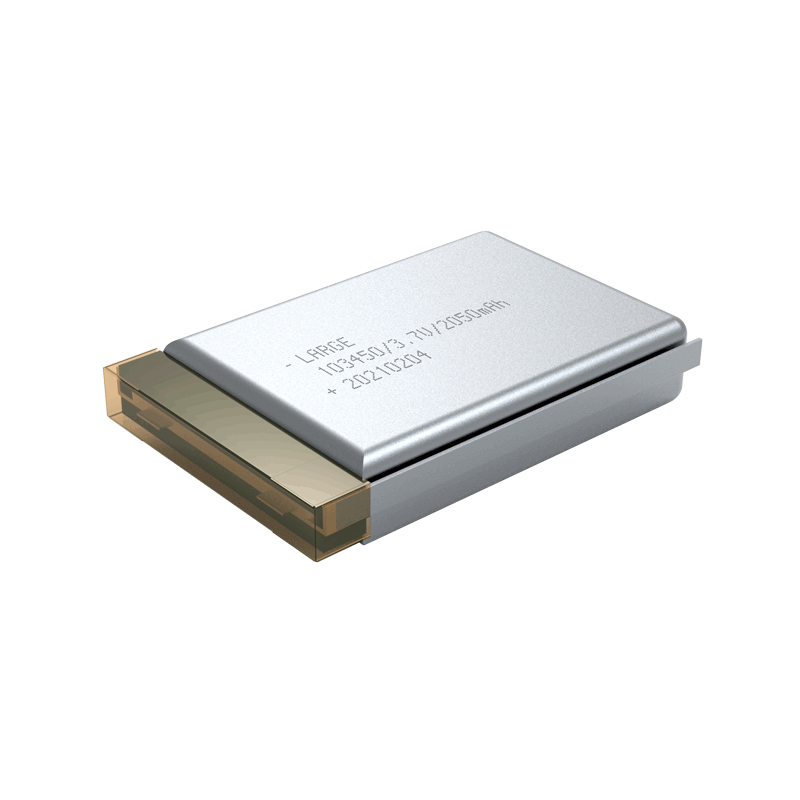

103450 3.7V 2050mAh Lithium Polymer Battery for Medical device

Product number: 08DQ0033-01

Cell model: 103450/3.7V/ 2050mAh

Battery specification: 103450-1S1P/3.7V/2050mAh

Product dimension: 52*34.5*10.5mm (Max)

Nominal voltage: 3.7V

Nominal capacity: 2050mAh

Charging voltage: 4.2V

Charging current: ≤1025mA

Discharge current: ≤3200mA

Discharge cut-off voltage: 3.0V

Internal resistance of finished product: ≤200mΩ

Battery weight: 50g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20~+50℃ (less than 1 month) -20~ 45 ℃(less than 3 months); -20~+25℃ (less than 12 months)

Battery Package: Bare battery + protection plate

Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Medical equipment
