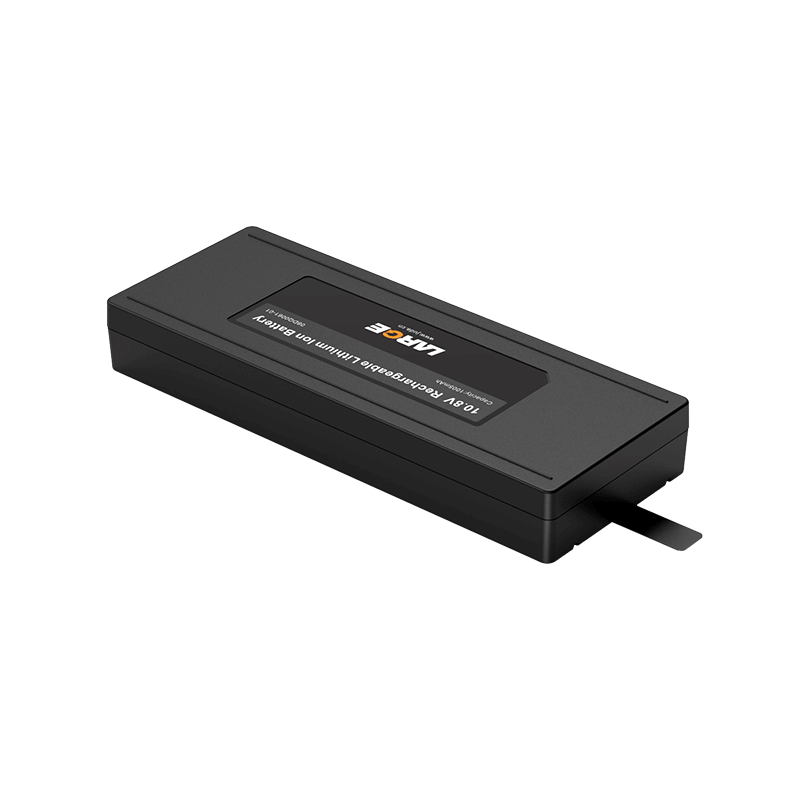

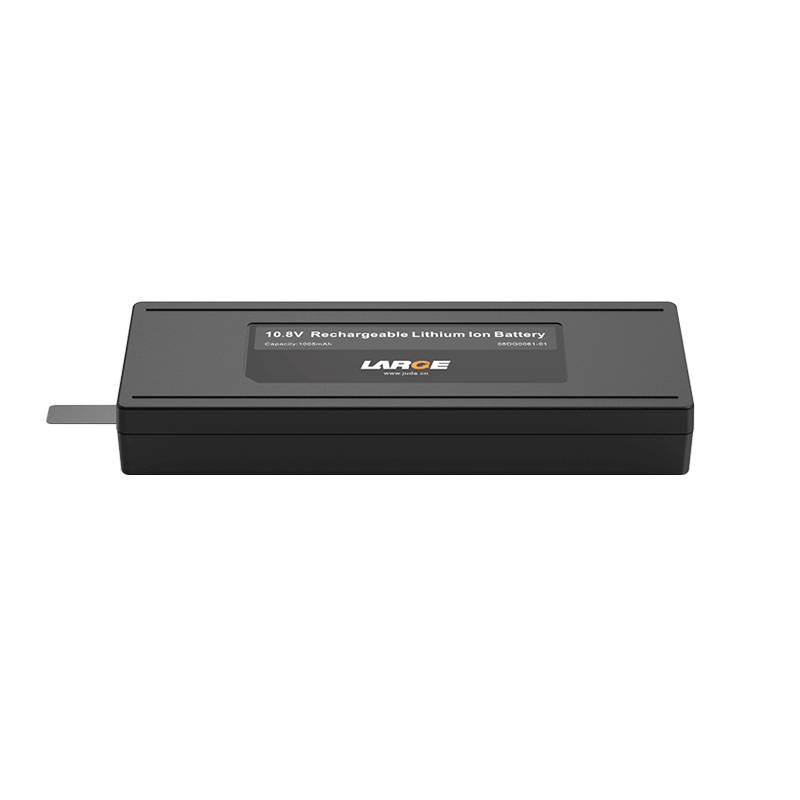

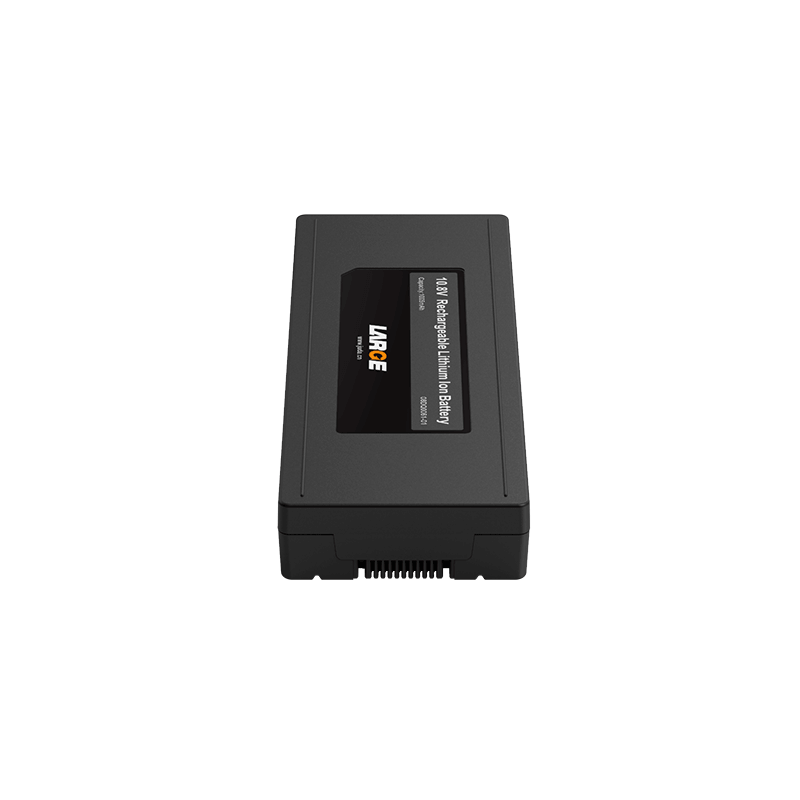

18650 10.8V 10.05Ah ECMO Lithium-ion Battery for Medical Device

Project number: 08DQ0061-01

Cell model: INR18650-35E/3350mAh/3.6V-SDI

Battery specification: 18650-3S3P/10.05Ah/10.8V

Nominal voltage: 10.8V

Nominal capacity: 10.05Ah

Charging voltage: 12.6V

Charging current: ≤5.0A

Discharge current: 15.0A

Instant discharge current: 30.0A

Discharge cut-off voltage: 8.4V

Finished internal resistance: ≤250mΩ

Battery weight: 700g

Product dimension: 26.5*72.2*185.2mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23 ° C

Battery case: ABS+PC

Intelligent lithium battery protection: power management, short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: ECMO medical devices
