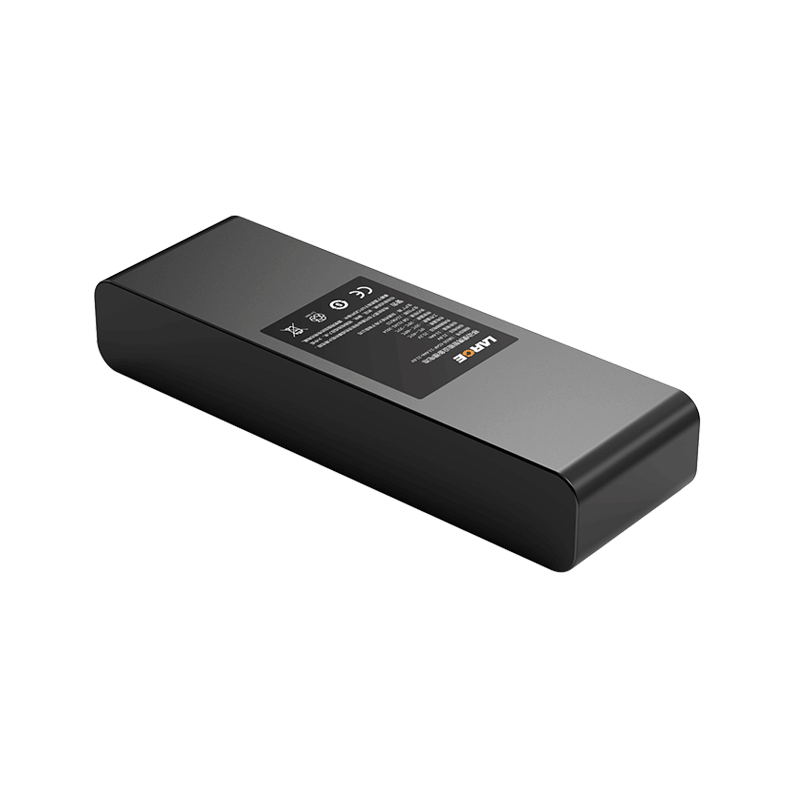

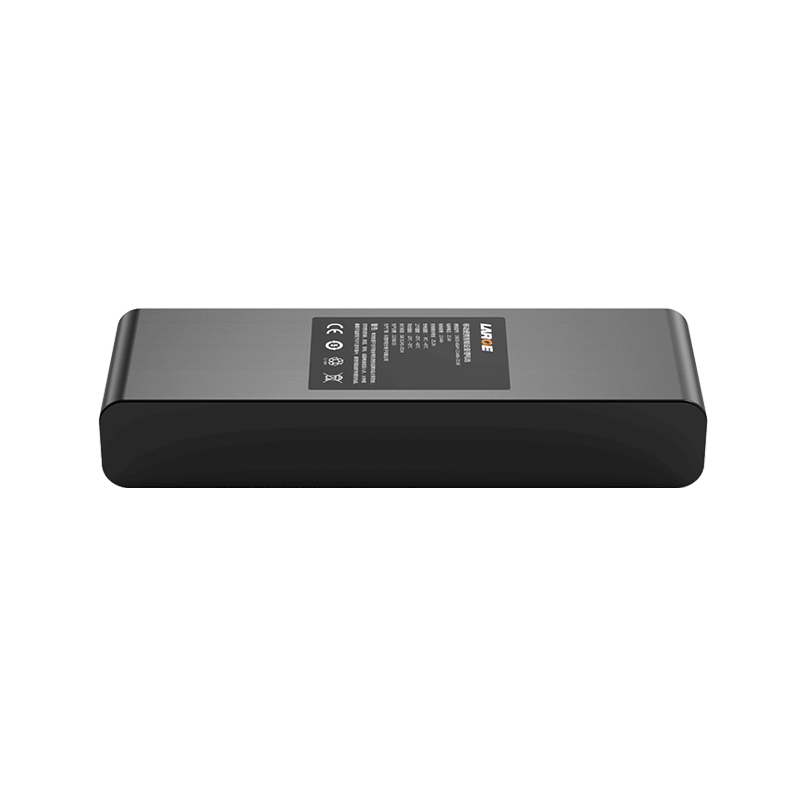

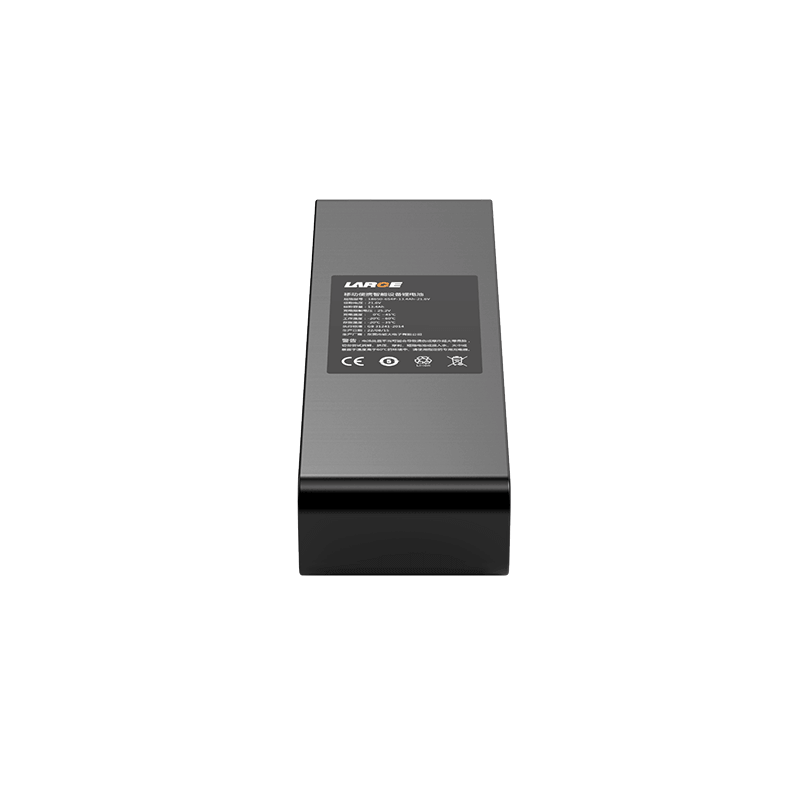

18650 21.6V 13.4Ah Lithium-ion Battery for Mobile Smart Devices

Product number: 01WQ0097-01

Cell model: 18650-3350mAh-3.6V

Battery specification: 18650-6S4P-13.4Ah-21.6V

Product size: 230*71*38mm (Max)

Nominal voltage: 21.6V

Nominal capacity: 13.4Ah

Finished internal resistance: ≤120mΩ

Charging voltage: 25.2V

Charging current: ≤6A

Discharge current: ≤15A

Discharge cut-off voltage: 16.8V

Battery weight: 1300g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: blue PVC heat shrinkable film

Output mode: MOLEX plug

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on

Application: Mobile intelligent equipment, portable equipment, intelligent testing equipment
