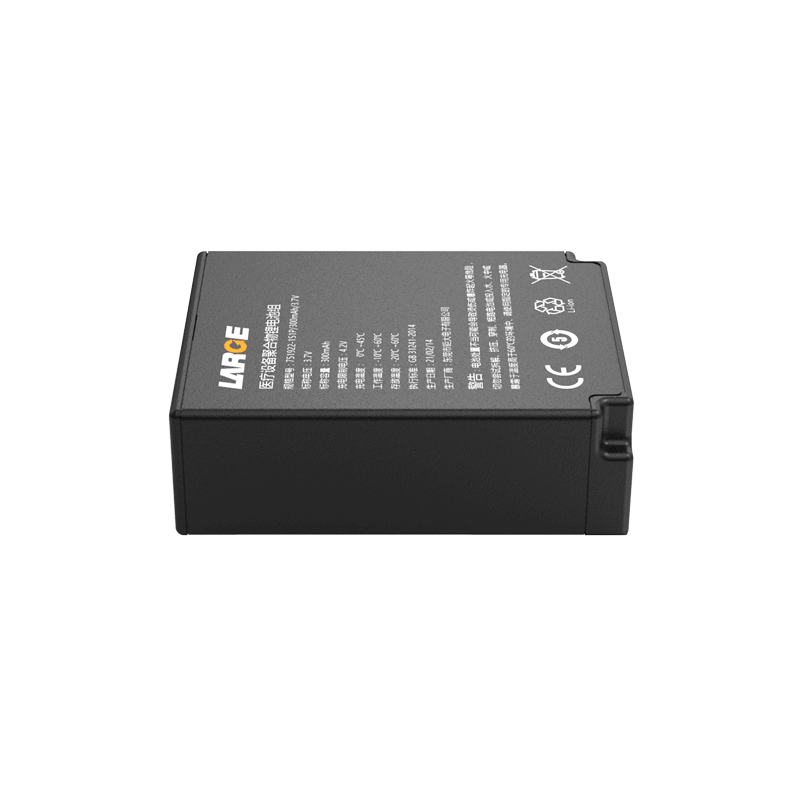

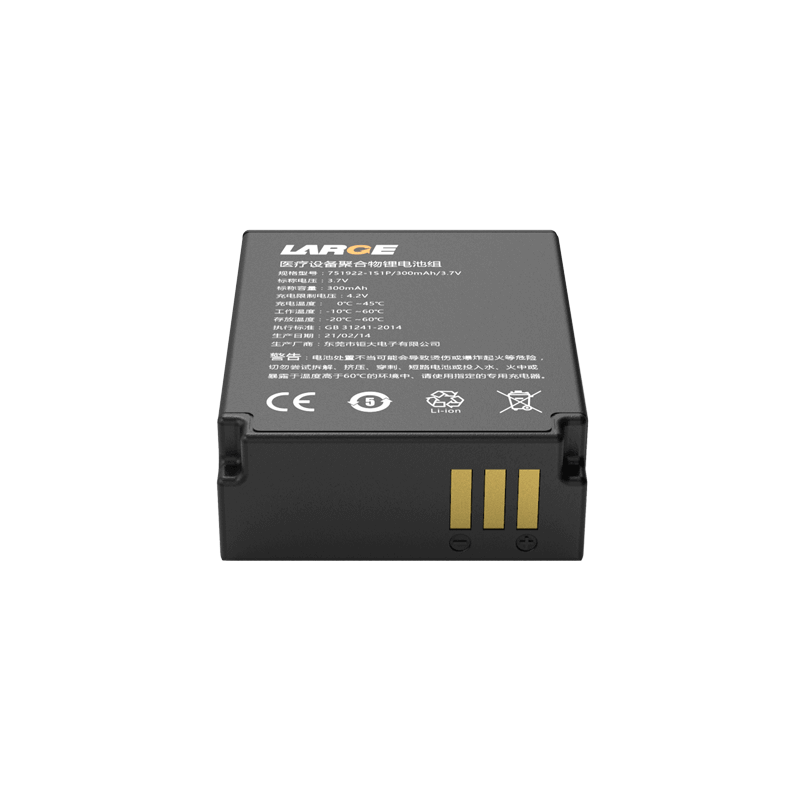

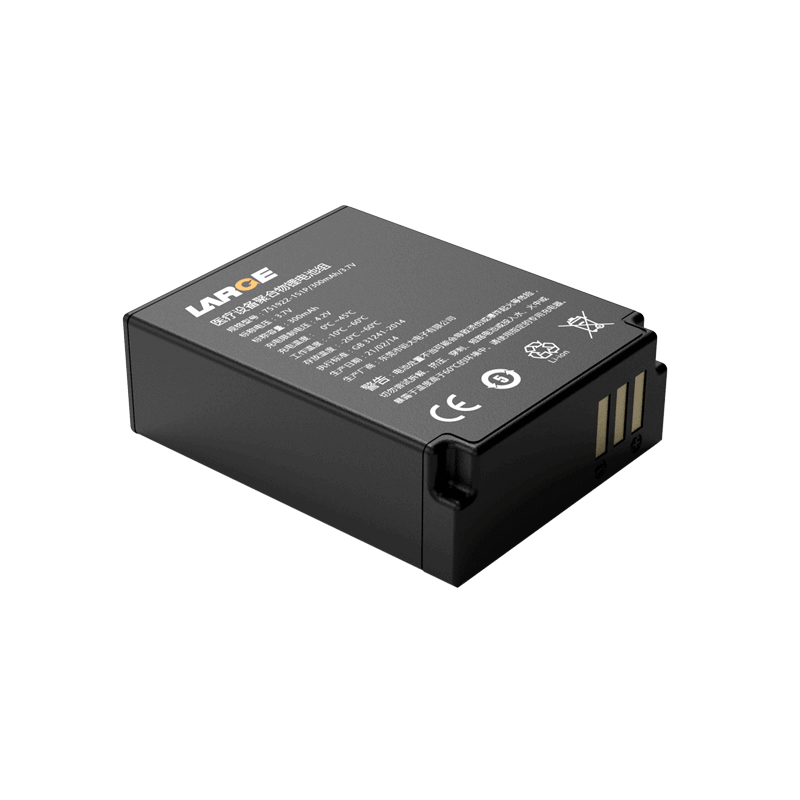

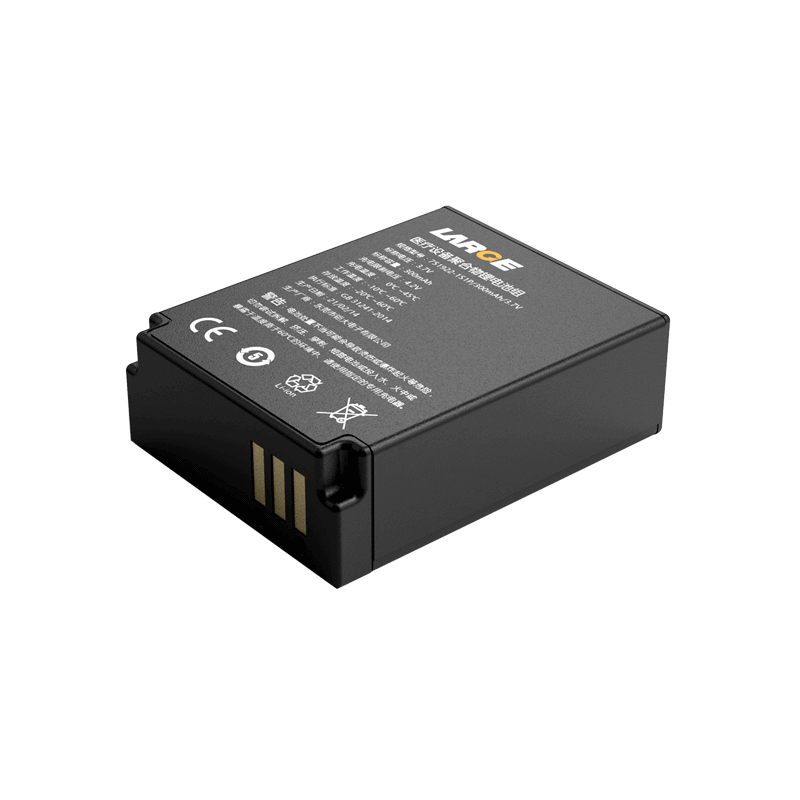

751922 3.7V 300mAh Lithium Polymer Battery for Medical Device

Product number: 08DQ0032-01

Cell model: 75192/300mAh /3.7V

Battery sSpecification: 751922-1S1P/300mAh/3.7V

Product dimension: 28*22*9mm (Max)

Nominal voltage: 3.7V

Nominal capacity: 300mAh

Charging voltage: 4.2V

Charging current: ≤300mA

Discharge current: ≤450mA (100us)

Discharge cut-off voltage: 3.0V

Internal resistance of finished product: ≤200mΩ

Battery weight: 8g

Charging temperature: 0 ~ 45℃

Discharge temperature: -10 ~ 60℃

Storage temperature: -20~+60℃ (less than 1 month) -20~ 45 ℃(less than 3 months); -20~+25℃ (less than 12 months)

Battery Package: Plastic case

Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Medical equipment
