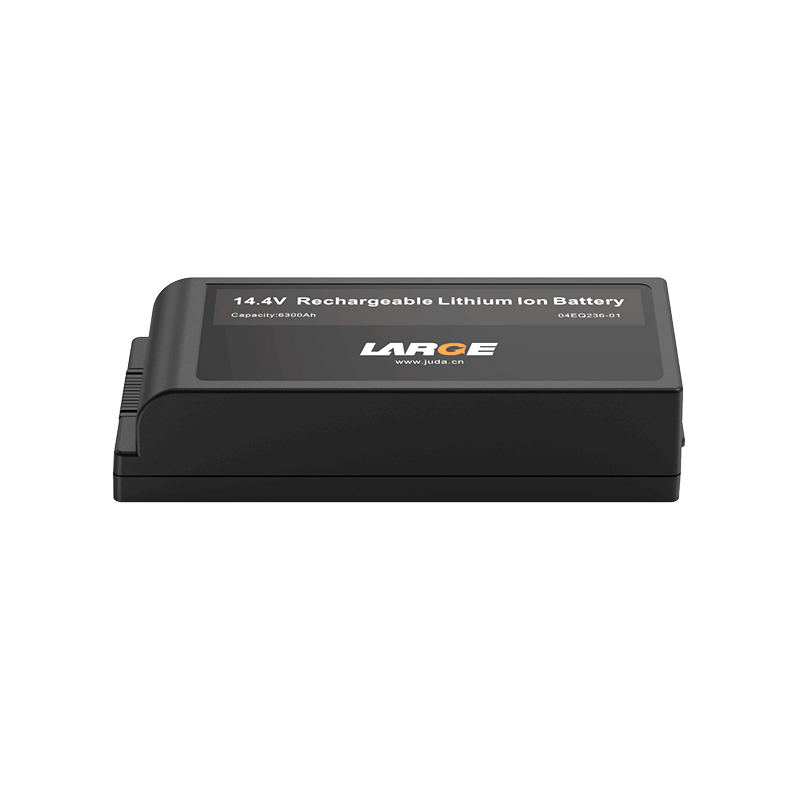

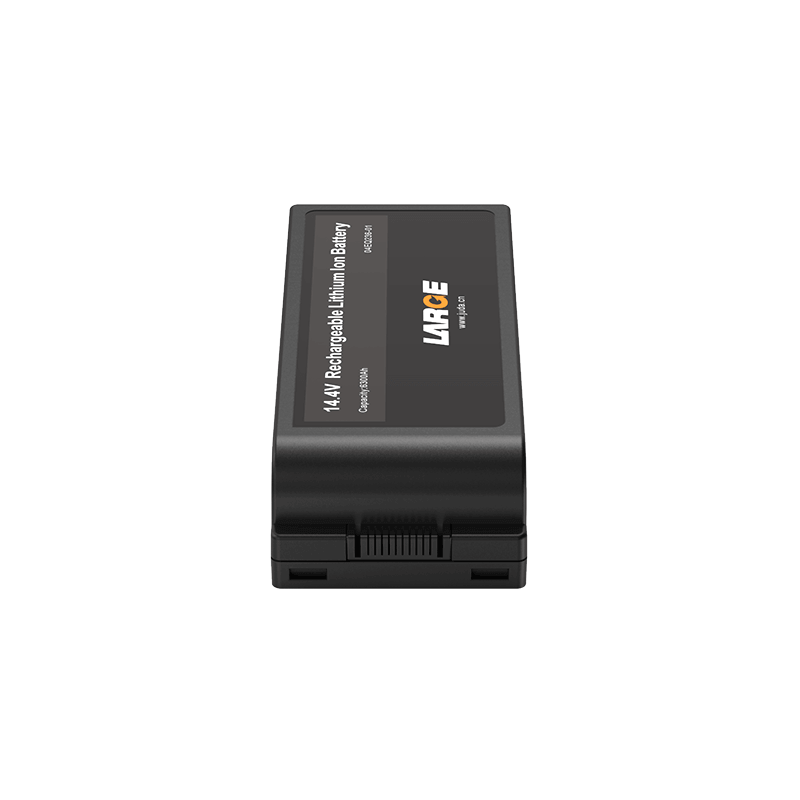

18650 14.4V 6700mAh Lithium-ion Battery for B Supersonic Diagnostic Set

Prouct number : 09AQ109-22

Batteries model: NCR18650GA6W / 3350 mah / 3.6 V

Battery specification: 18650-4S2P/6700mAh/14.4V (Smart + case)

Nominal voltage: 14.4V

Nominal capacity: 6700mAh

Charging voltage: 16.8V

Charging current: ≤3.35A

Discharge current: 10.0A

Instantaneous discharge current: 15.0A

Discharge cut-off voltage: 11.2V

Finished internal resistance: ≤250mΩ

Battery weight: 550g

Product dimension: 40.2*75.1*177.4mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23 ° C

Battery case: ABS+PC

Intelligent lithium battery protection: power management, short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: B ultrasound machine
