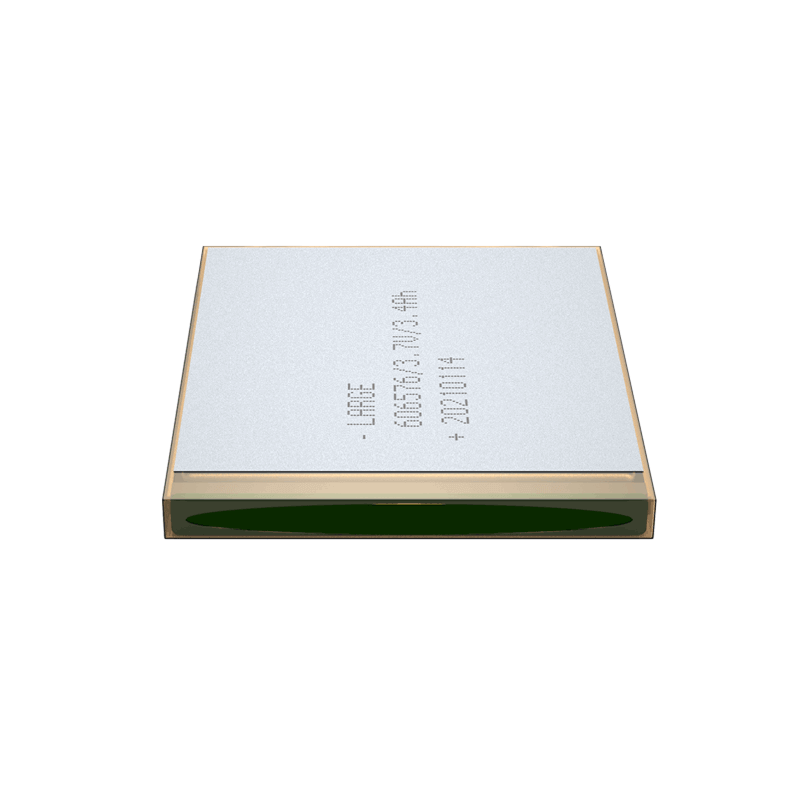

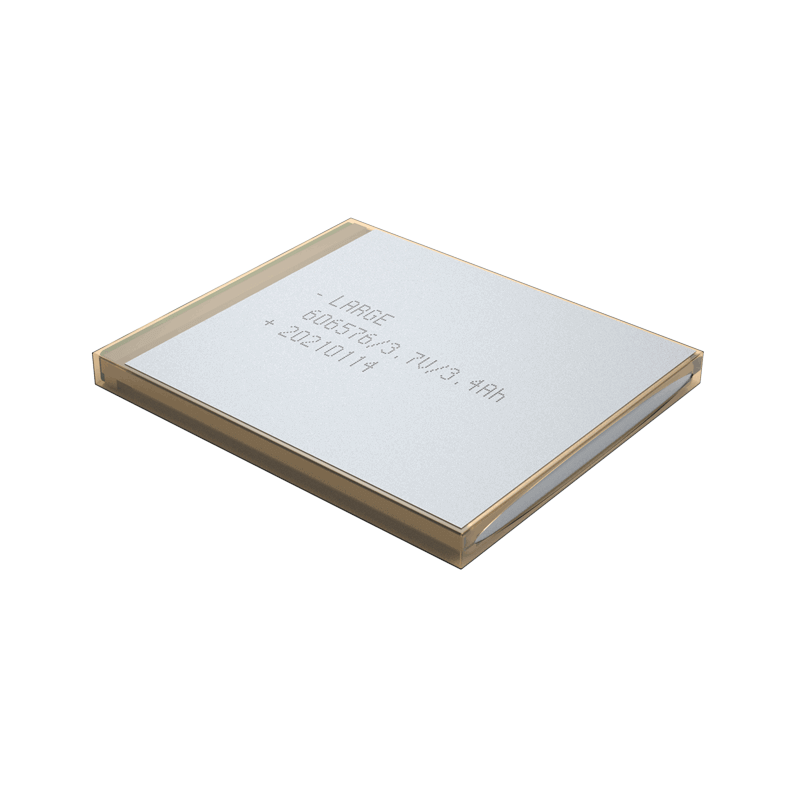

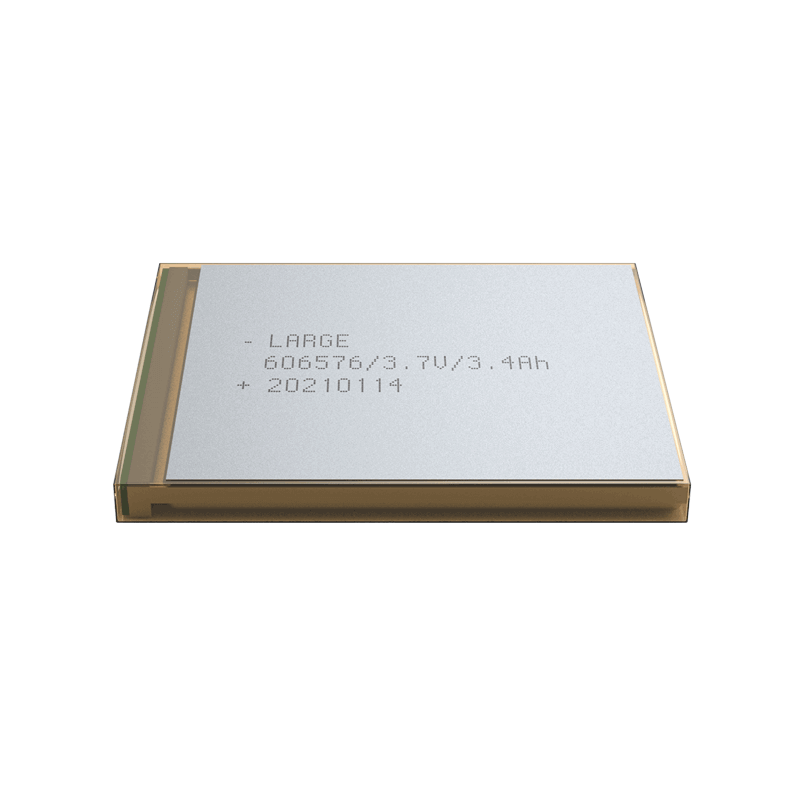

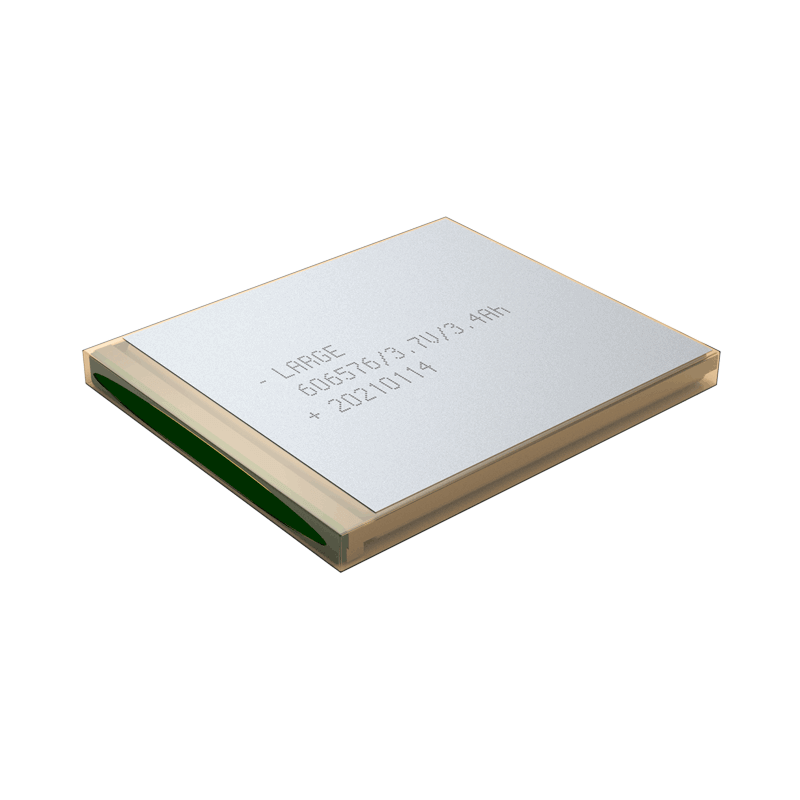

606576 3.7V 3.4Ah Lithium Polymer Battery for Medical Laryngoscope

Product number: 01WQ0030-07

Cell model: 606576-3.4Ah-3.7V

Battery specification: 606576-1S1P-3.4Ah-3.7V

Product size: 70*66*6.8mm (Max)

Nominal voltage: 3.7V

Nominal capacity: 3400mAh

Charging voltage: 4.2V

Charging current: ≤1700mAh

Discharge current: ≤3400mAh

Discharge cut-off voltage: 3.0V

Finished product internal resistance: ≤120mΩ

Battery weight: 90g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20~+50℃ (less than 1 month) -20~ 45 ℃(less than 3 months); -20~+25℃ (less than 12 months)

Battery encapsulation: Bare battery + protective board insulation

Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Laryngoscope products for medical equipment

Product Features

1.Bare battery + insulation protective board is simple and reliable, and is easy to install.

2.Output terminal: Use the national standard UL wire output mode, in order to increase the electrical reliability;

3.Battery protection management: Use imported well-known brand protection chip with good stability, high precision monitoring, precise contro to eliminate safety risks.

4.The battery pack has good safety, nice discharge performance and long cycle life;

5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
