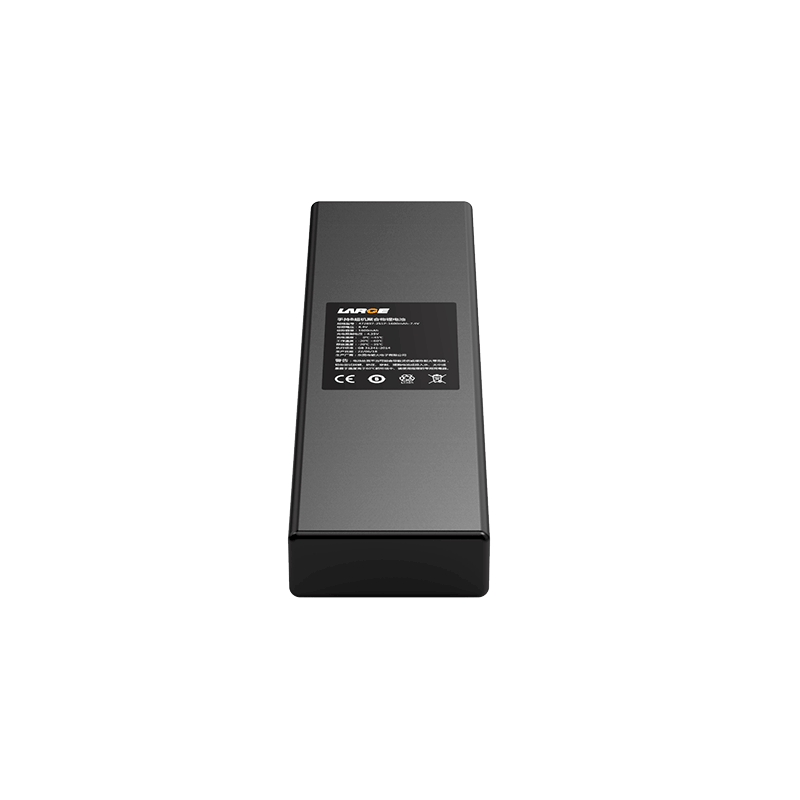

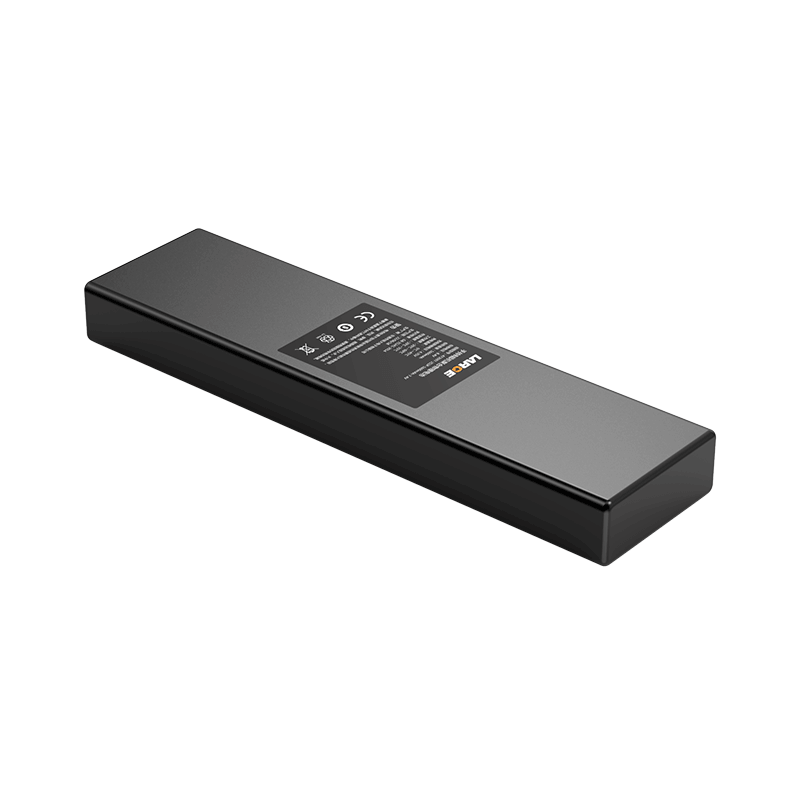

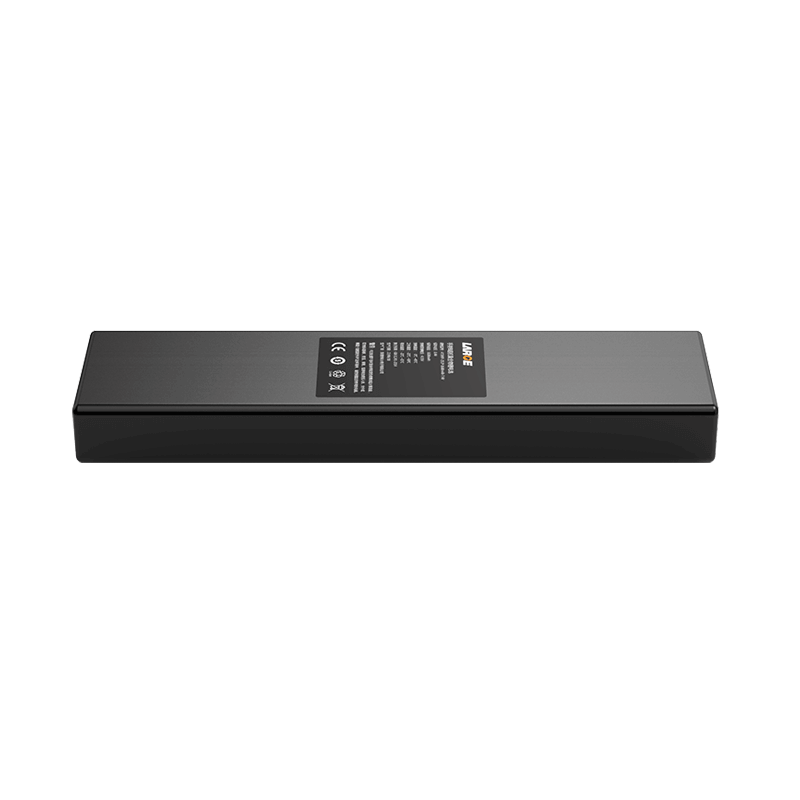

7.4V 1600mAh Lithium Polymer Battery for Handheld B Supersonic Diagnostic Set

Product number: 06DQ061-01

Cell model: 472697-1600 MAH-3.7V

Battery specification: 472697-2S1P-1600mAh-7.4V

Product size: 103*27.5*10.5mm (Max)

Nominal voltage: 7.4V

Nominal capacity: 1600mAh

Finished internal resistance: ≤180mΩ

Charging voltage: 8.4V

Charging current: ≤3.2A

Discharge current: ≤1.4A

Discharge cut-off voltage: 6.0V

Battery weight: 60g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: blue PVC heat shrinkable film

Output mode: JST plug output

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection and so on

Application: Portable medical B-ultrasound, portable equipment
