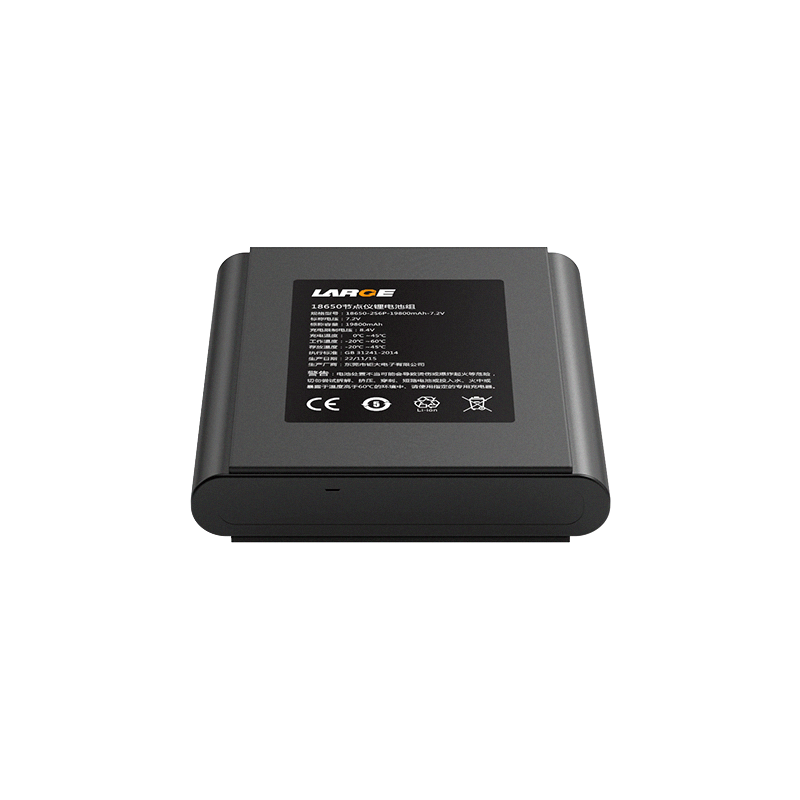

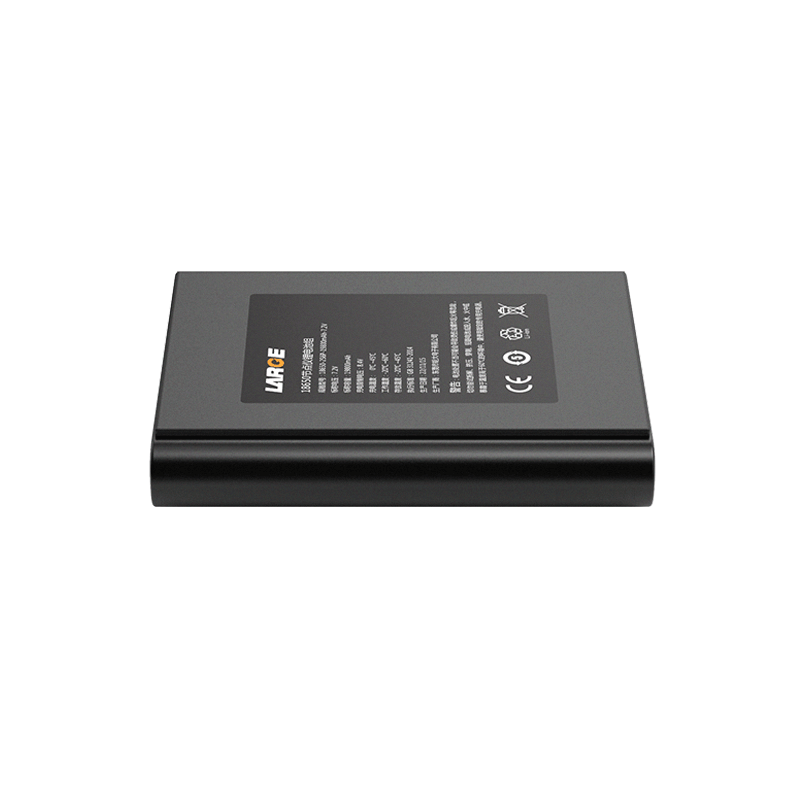

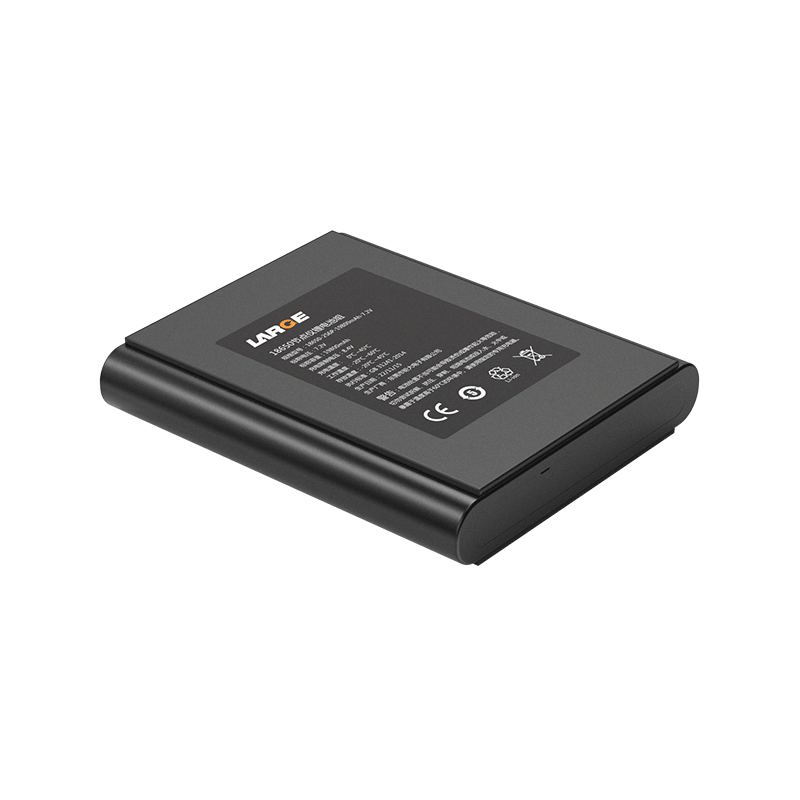

Product number: 37DZ078-06
Battery model: 18650/3.6V/3350mAh
Battery specification: 18650-2S6P-19800mAh-7.2V
Nominal voltage: 7.2V
Nominal capacity: 19800mAh
Charging voltage: 8.4V
Charging current: ≤8A
Discharge current:<2A
Instantaneous discharge current: 2A
Discharge cut-off voltage: 4.8V
Finished internal resistance: ≤80mΩ
Battery weight: 620g
Product size: 132*110*22.6mm (L*W*H)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery case: ABS+PC
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Application: node instrument, exploration equipment
