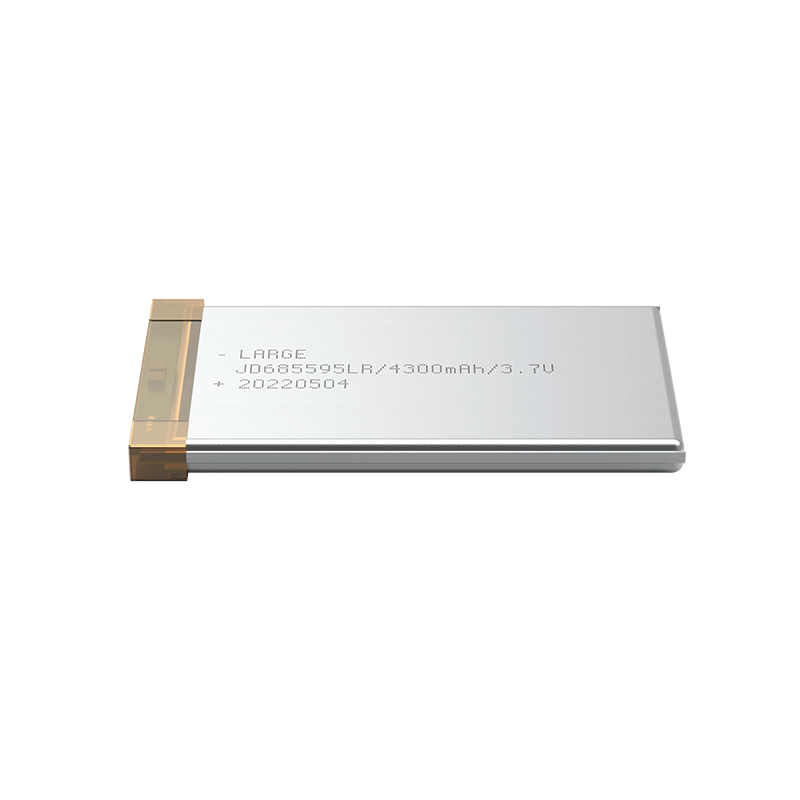

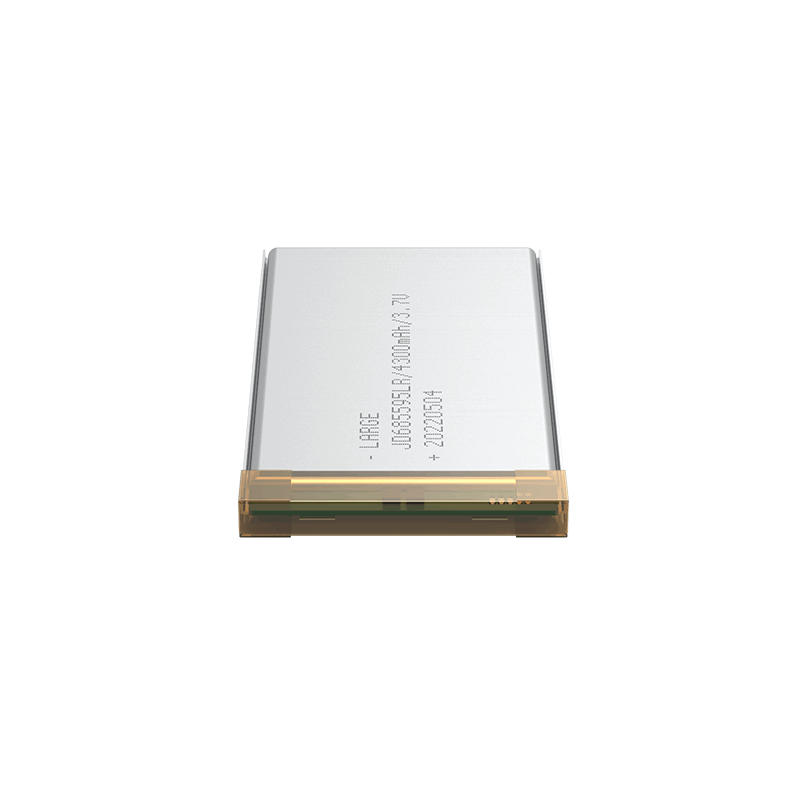

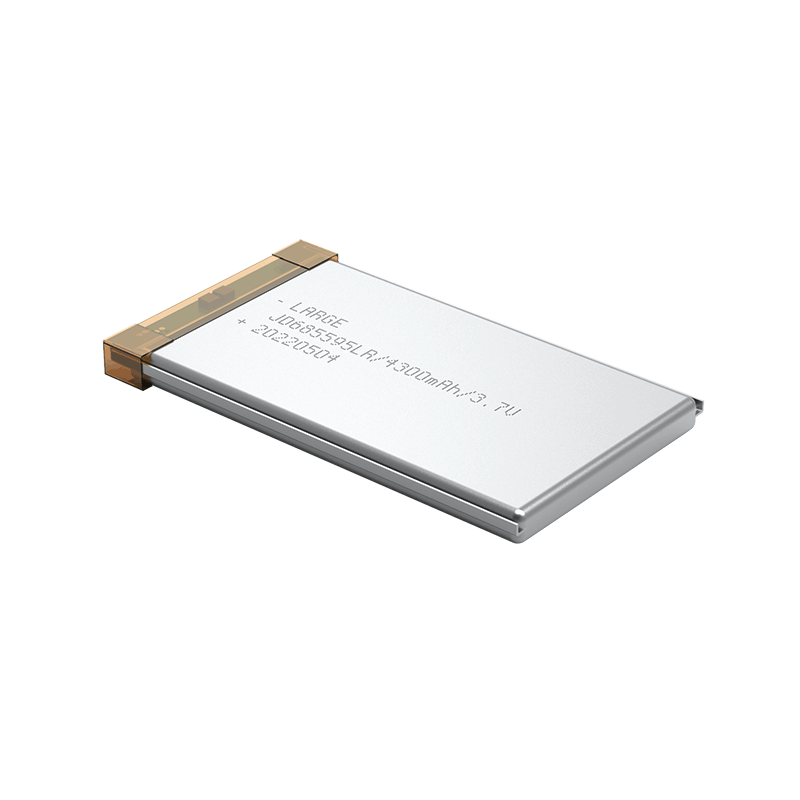

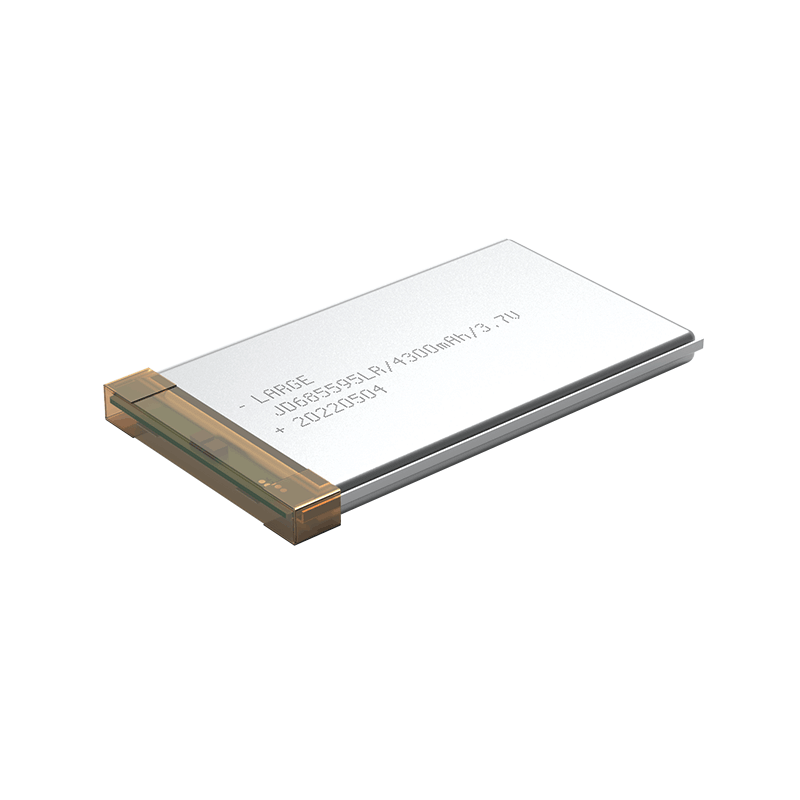

685595 3.7V 4300mAh Low Temperature Lithium Polymer Battery

Product number: 36AQ615-01

Cell model: JD685595LR/4300mAh/3.7V

Battery specification: JD685595LR/4300mAh/3.7V

Product dimension: 98mm*56mm*7mm

Nominal voltage: 3.7V

Nominal capacity: 4300mAh

Charging voltage: 4.2V

Charging current: 2A

Discharge current: 2A

Discharge cut-off voltage: 2.5V

Finished internal resistance: ≤200mΩ

Battery weight: 85g

Charging temperature: 0 ~ 45℃

Discharge temperature: -30 ~ 60℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery encapsulation: bare cell + board + plug cable

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Device
