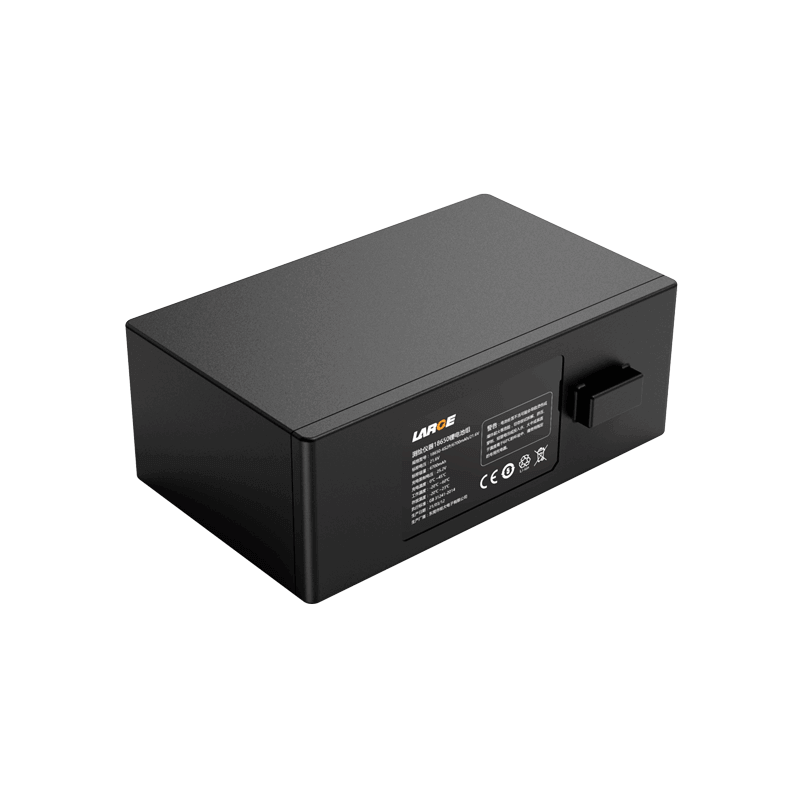

18650 21.6V 6700mAh Samsung Battery for Surveying Instrument

18650 21.6V 6700mAh Samsung Battery for Surveying Instrument
18650 21.6V 6700mAh Samsung Battery for Surveying Instrument
18650 21.6V 6700mAh Samsung Battery for Surveying Instrument
18650 21.6V 6700mAh Samsung Battery for Surveying Instrument

Product Detail

Project number: 01WQ0056-01

Cell model: INR18650-35E/3350mAh/3.6V

Battery specification: 18650-6S2P/6700mAh/21.6V

Nominal voltage: 21.6V

Nominal capacity: 6700mAh

Charging voltage: 25.2V

Charging current: ≤4.0A

Discharge current: 6.70A

Instant discharge current: 20.0A

Discharge cut-off voltage: 17.4V

Finished product internal resistance: ≤350mΩ

Battery weight: 450g

Product dimension: 47.5*94*128mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23℃

Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Surveying and mapping instruments

*
*
*
*
*
