Sep 08, 2020 Pageview:1139
Did you realize that vehicle battery terminals change in sizes? Battery organizations have assembled them as indicated by these sizes. Contingent upon the sort of vehicles that you utilized, most batteries have distinctive terminal sizes.
Despite the fact that there is a standard size for most vehicles and vehicles, there are those which arrive in an alternate size. The battery condition in the vehicle additionally decides the sort of scale that you will use for your battery. Both the side terminals are comparative, however top posts terminals are not equivalent and the equivalent. For top posts batteries, the positive posts are more broad and more conspicuous.
A few batteries sizes are accessible with terminals in a wide range of setups, however two primary designs are:
●Positive terminal on left corner and negative terminal on right corner
●Negative terminal on left corner and positive terminal on right corner.
Zinc-based Battery Terminals:
These kinds of terminals were designed for natural orders, for example, Proposition 65 and RoHS. Zinc battery terminals offer points of interest over lead amalgam type battery terminals. These points of interest incorporate expanded electrical conductivity, expanded consumption opposition, and decreased lead expulsion costs.
UPS Battery Terminals:
Batteries intended for use inside a convenient uninterruptible force flexibly (UPS) normally use Faston tabs, regularly with a connector link among those and the UPS's inner battery connectors. Bigger outer battery packs utilize an assortment of connectors, including the Anderson Powerpole MultiPole arrangement (as utilized by Tripp Lite), which are shaded coded and keyed for explicit voltages. Exceptionally enormous batteries as introduced in battery rooms, for example, are found in datacenters that use darted associations from cell terminals to transport bars or adaptable links.
SLA Battery Terminals:
The most well-known sizes of fixed lead corrosive (SLA) batteries use Faston tabs, yet some bigger batteries use L terminals, while some particular structures utilize other, at times restrictive terminals, for example, more established Panasonic camcorder batteries (of the sort utilized for VHS shoulder-mounted camcorders).
Marine Battery Terminals:
Marine batteries consist of 2 terminals, a 3/8"- 16 strung post for the positive terminal, and a 5/16"- 18 strung post for the negative terminal.
Dry Battery Terminals:

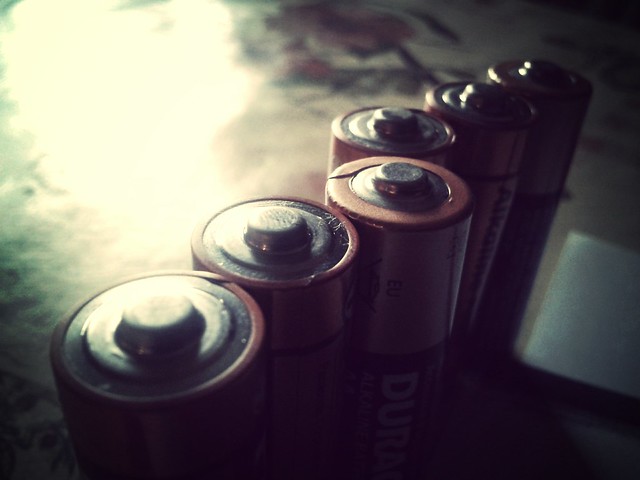

Most dry batteries, (the AA battery) are projected towards one side (positive) and a level base (negative). These combine with strips of metal or springs in the battery container.
Six volt lamp batteries normally highlight two looped, cone-molded spring terminals, intended to mate with level contact plates within the battery compartment.
1) F1 Faston Battery Terminal:
The F1 Battery Terminal is normally found on batteries utilized for home caution frameworks, toy vehicles, fish locators and numerous different items. The situation of F1 Terminal may shift between various kinds and sizes of batteries. The size of the F1 terminal varies from 3/16″ (0.187″) – 4.75mm wide. It‘s also called TAB 187.
2) F2 Faston Battery Terminal:
It is normally constructed on batteries which are used in UPS systems. The size of F2 terminal ranges 1/4″ (0.25″) – 6.35mm wide. The F2 terminal is also known as TAB 250.
3) Faston Polarized Terminal:
There are two distinct terminals on this battery. Positive Terminal F2 and Negative terminal F1. A genuine case of this is the HR1224W battery.
4) SP Terminal:
The terminal on this battery is a spring. The negative and positive terminals are completely folding. This kind of terminal is found in spotlights and lamps.
5) WL Terminal:
This battery is ordinarily utilized in caution frameworks and clinical gadgets.
6) PC Terminal:
PC is short for Pressure Contacts. The terminal on a PC battery is for the most part as an afterthought, not at the top similarly as with different terminals. This battery is generally utilized in clinical gadgets. A case of a PC Terminal battery is a PK12V2.3PC.
7) TH Terminal:
This is one of the two most normal kinds of toy battery connectors.
8) TS Terminal:
Another sort of toy battery connector.
9) U Terminal:
U terminal represents Universal Automotive Post. This sort of battery has a battery post with nut and screw connectors.
10) NB Terminal:
The NB represents Nut and Bolt. This is a typical battery terminal, a case of this is the 12V 18Ah – TLV12180 battery. There are a few assortments of the NB terminal, NB1, NB2, NB3, NB4. The most well-known is NB. It's a normalized terminal accessible on numerous batteries.
11) B, T6 Terminal:
Strung Insert 6mm stud. Notice the width of the terminal is 16mm.
12) T8 Terminal:
Threaded Insert 6mm stud. On the T8 terminal, the stud is additionally 6MM, however the supplement is 20mm wide.
13) T11 Terminal:
Threaded Insert 8mm stud.The stud is 8mm on T11. The terminal is 20mm wide.
14) T12 Terminal :
Threaded Insert 5mm stud. On the T12 Terminal, the width is 12mm and the stud is 5mm.
YES, Lithium battery does vary with its battery sizes. Depending on the brand of the battery manufacturing, the sizes and types of the battery terminals vary.
Battery terminals arrive in a wide scope of shapes and sizes. This is on the grounds that each application is unique, regardless of whether you need a lithium battery or a lead-corrosive battery for your telecom venture, reinforcement power, pontoon, golf truck, floor scrubber, caution frameworks or wheelchair.
What Are Different Battery Terminal Sizes Used For?
As described above, different terminal sizes of the batteries are made to support different devices. Each type and size carry their own specific configurations. With their manufacturing properties they can hold different quantities of voltages.
