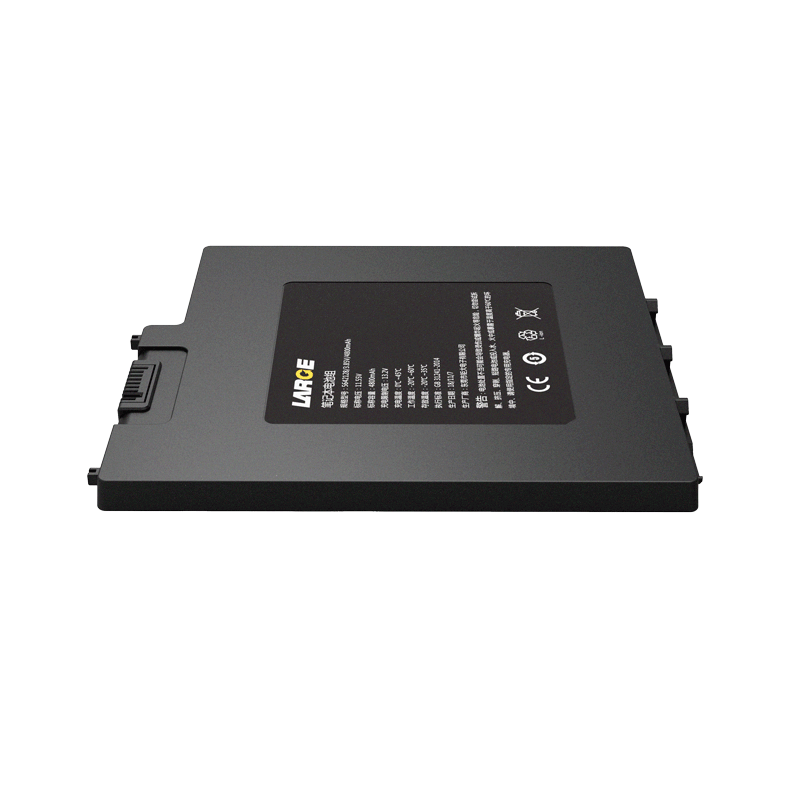

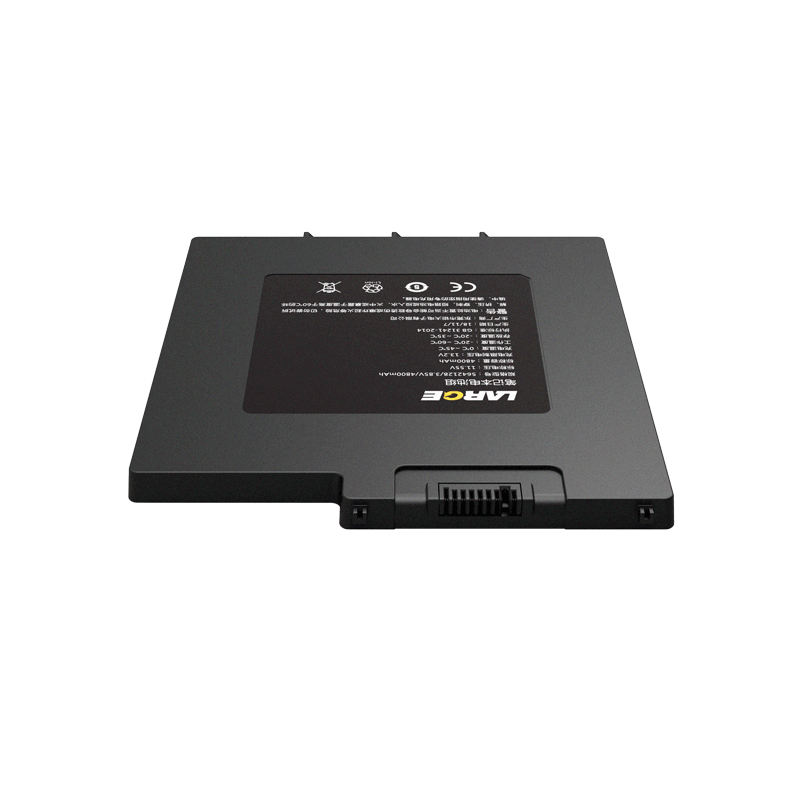

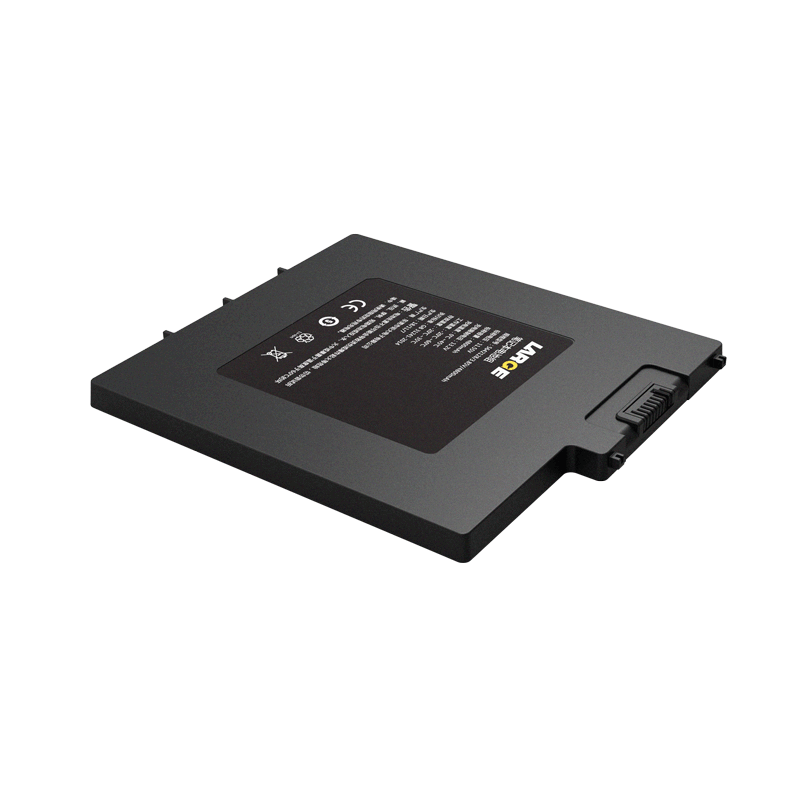

11.55V 4800mAh Lithium Polymer Battery for Special Laptop with SMBUS Communication

Product number: 33DZ007-02G

Cell model：5642128/3.85V/4800mAh

Battery specification: 3S1P 4800mAh/11.55V

Nominal voltage：11.55V

Nominal capacity：4800mAh

Charging voltage: 13.2V

Charging current: ≤3A

Discharging current: 3A

Instant discharging current: 4A

End-off voltage: 7.5V

Internal resistance: ≤200mΩ

Battery weight: 350G

Product dimension: L*W*H  131.91*145.91*8.6mm

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Temperature protection: 65℃±5℃

Communication protocol: SMBUS

Battery case: engineering plastic

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, etc.

Application field: laptop

Product features

1.Hardware output connector: adopt gold-plated shrapnel output mode to increase conductive reliability.

2. Cell: adopt ultra-polymer cell, so that it can discharge at -20~60℃.

3. Data communication management: adopt TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. The battery pack has good security, communication protocol, long cycle life, and it is special product.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
